Optics

Riflescopes

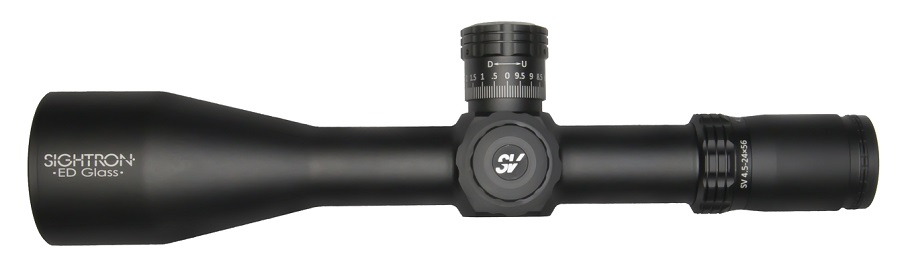

The SV 4.5-24x56 is the latest tactical scope from Sightron, featuring ED Glass (Extra Low Dispersion Glass), a 34mm tube, F.A.S.T. (Fine Adjustment Sight Tuner) focusing system, and Locking Turrets. Each scope has fully multicoated lens, and is built to be shockproof and weatherproof. First focal plane. Now available with or without zero stop.

Magnification 4.5-24x56
Reticle Mil-Hash-H
Illuminated Reticle Yes
Field of View (ft @ 100 yds) 22.5-4.2
Eye Relief 3.9-4.6
Click Value (@ 100 yds) .1 MRAD
Weight (g) 989
Length (in.) 13.7
Tube Diameter 34mm
Windage 17.5 MRAD
Elevation 35 MRAD

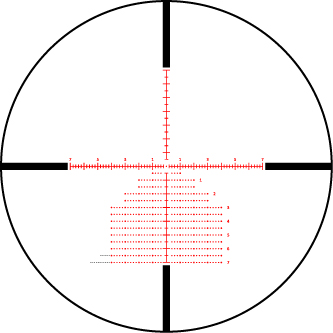

Above: Mil-Hash-H Reticle for the SV 4.5-24x56





Spotting Scopes

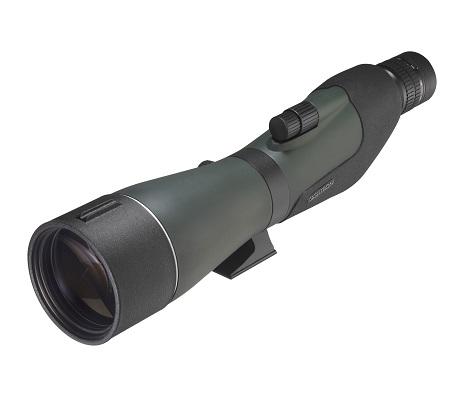

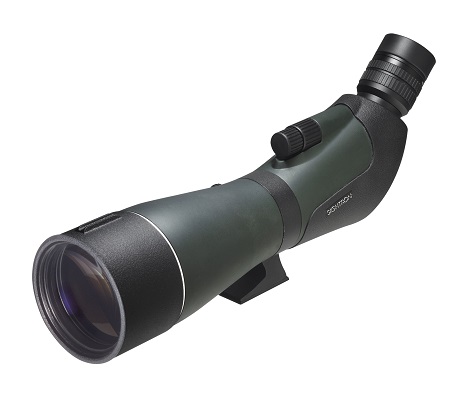

Above: Sightron SIIBL 20-60x85 Angled and Straight Eye Piece Spotting Scopes.

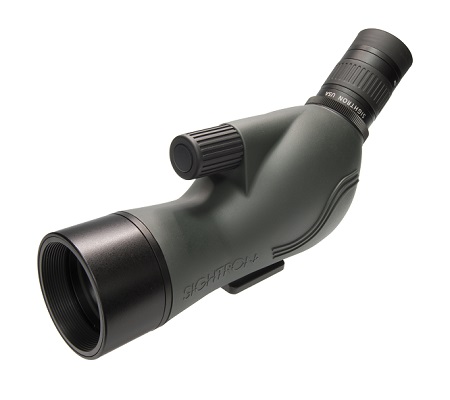

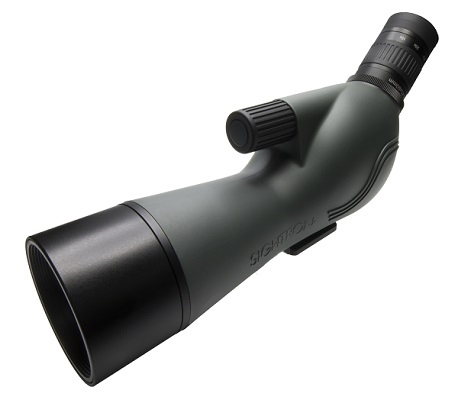

Below: Sightron SIH 13-40x50 and SIH 15-45x60 Spotting Scopes

Our observation scopes are built with full multi-coated lens and a large objective, to allow the viewer to see clearer and further. Each spotting scope comes with a carrying case and features a pull out sunshade. The SIH Series 13-40x50 and 15-45x60 spotting scopes are designed as a lightweight and compact travel companion. The SIIBL series 16-48x68 and 20-60x85 spotting scopes feature Extra Low Dispersion Glass for highest clarity, and feature a dual focus adjustment system that allows large adjustments from the rear, and fine adjustments from the front.

Magification ED Glass Exit Pupil Dia. Field of View (@1000yds) Min. Focus (ft) Eye Relief Weight (g) Length (in.) Eyepiece
13-40x50 No 3.8-1.25mm 157-95.9 ft 7.8 ft 20-10mm 726g 10.5" Angled
15-45x60 No 4-1.3mm 148-78.5 ft 7.8 ft 20-10mm 794g 12" Angled
16-48x68 Yes 4.3-1.4mm 130-65 ft 24 ft 19.4-17.8mm 1503g 17" Angled
20-60x85 Yes 3.9-1.35mm 96-48 ft 24 ft 15-14.8mm 1871g 17" Angled
20-60x85 Yes 3.9-1.35mm 96-48 ft 24 ft 17.7-15.6mm 1871g 18" Straight



Binoculars

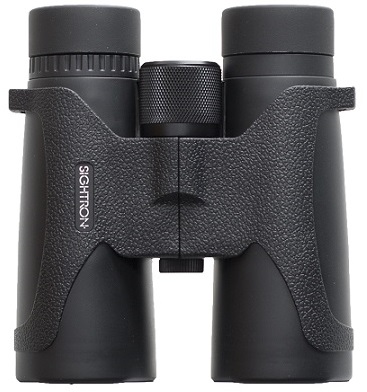

The SIII ED Series Binoculars gives you the confidence to see before you are seen. The ED (Extra Low Dispersion Glass) roof prism, with fully multi coated lens, provides maximum light transmission and edge-to-edge clarity. Available in four different models.

Magnification 8x42 10x42 8x32 10x32
Exit Pupil Dia. (mm) 5.25 4.2 4 3.2
Field of View (ft @ 100yds) 367 315 394 315
Min. Focus (ft) 10 10 10 10
Eye Relief 19 16 17 15
Weight 714 729 598 570

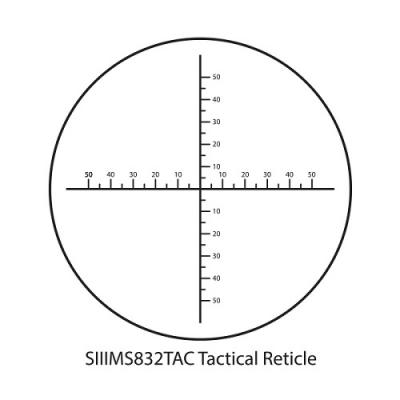

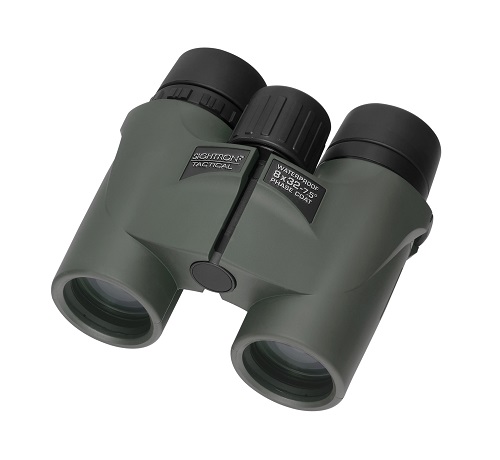

The SIII 8x32 Tactical Binoculars, feature a Mil-Scale reticle for ranging, and a Magnesium body for durability and weight reduction. Lens are fully multi-coated and feature a roof prism.
